    Going perfectly from concept to completion in CNC requires a spindle drive at peak performance.

    Here’s how to tell whether your spindle may be fading fast.

-------------------------------------

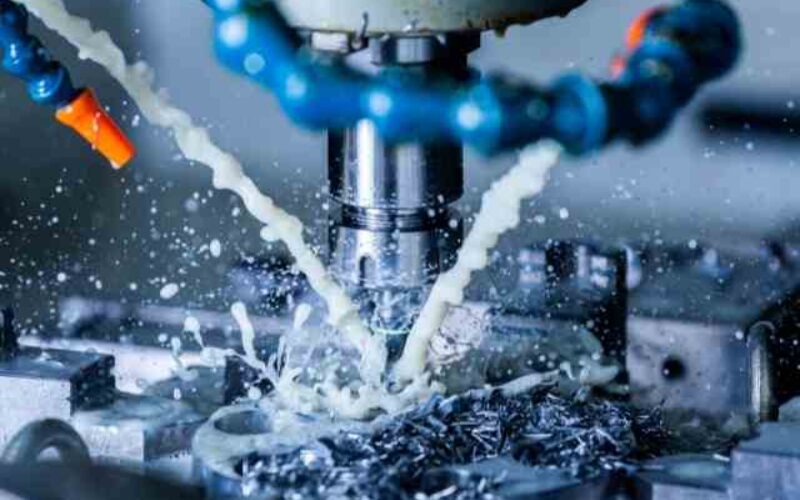

Since its inception, computer numerical control machining has been a revelation in the industrial world. Never before has it been possible to cut and shape material with the precision that CNC allows. The engine of that precision is in the spindle—the motorized, rotating shaft that holds the CNC mill’s cutting tool in place.

Though a CNC mill in perfect condition can follow its computerized directions to the letter, imperfections in the work become clear when the spindle is not at its best. When you notice your work does not meet your standards—or even if you haven’t noticed something wrong with your finished product yet—be aware of these common signs of a failing CNC spindle drive.

Overheating Spindle

Have you noticed that your spindle is running a little hot? While the high-RPM movement of a spindle motor necessarily generates a little heat, a noticeably overheating spindle could be indicative of a larger problem. Your CNC mill copes with this heat by running coolant throughout the system to keep spindle temperatures from reaching dangerous highs.

Are you low on coolant? The fix could be as simple as that. However, not all fixes are that easy. Misaligned bearings may be causing this excess heat, necessitating precision repair from a trusted partner.

Noisy Operations

Just as high temperatures can signify a failing spindle, so too can excessive noise. If you notice your mill is louder than usual because additional noise is emanating from the spindle, address this immediately before it results in total (and costly) failure.

If everything isn’t in its right place within the spindle drive, that means the rattling isn’t only making loud sounds—it’s also doing damage to the components of the spindle. Sub out the spindle for a backup immediately and send the rattly one away for repairs.

Evident Fretting

Is your spindle’s toolholder showing small spots? That is something to worry about. “Fretting”—the visible signs of wear within a toolholder—is more than just an aesthetic concern. Friction between the spindle mouth and the toolholder causes these small defects to occur.

At first glance, they can appear to be rust, but they’re actually physical degradation of components. If fretting continues unabated, the entire spindle will eventually crumble, taking it past the point of no return—or to put a finer point on it, the point of no repair.

Low Finish Quality

We’ll finish this guide to the common signs of a failing CNC spindle drive with—you guessed it—finishing. Examine your finished product along its edges.

Are the cuts as smooth as you’d like them to be? Do you notice burrs, roughness, or other signs of a less-than-clean cut? This could mean your spindle is failing. Consider putting it on the shelf for now before your mill starts yielding unusable work, which will waste time and resources.
